DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control

Brand Name : ESTEL

Model Number : HE06-150SEH/01-1

Certification : ISO9001, CE, 3C, FCC, TLC

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1

Price : 286-1143 usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 16,000 sets per month

Delivery Time : 7-10 working days

Packaging Details : carton + foam + wooden case

Dimensions (Include flange) : 430×220×700 mm (W×D×H)

Material : Galvanized steel

Mounting Method : Door Mounting

Working Temperature Range : -20°C ~ 55°C

Power Supply DC : DC48V

Cooling Capacity : 150W/K(1500W)

Rated input power : 164W

Rated input current : 3.4A

IP Grade : IP55

Noise : ≤65dB

Contact Now

DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control


DC48V IP55 150W/K LCD Display Heat Pipe Outdoor Cabinet Heat Exchanger Modbus Intelligent Temperature Control

1. Application of Cabinet Heat Exchanger
This heat exchanger is mainly used for outdoor cabinet heat exchange. Also widely applied in small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM room etc.

2. Brief
Heat Pipe Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.
Heat exchanger is mostly used for enclosed area cooling, HEX is designed especially for mounting in a cabinet. The unit uses ambient air for temperature regulation so it must have access to ambient. The internal temperature of the enclosure is cooled via effective utilization of the ambient air.
3. Technical Parameters of Cabinet Heat Exchanger

Model No. HE06-150SEH/01-1
working environmental temperature -20°C ~ 55°C
storage working temperature -40°C ~ 70°C
working humidity ≤95%
rated heat exchange capacity 150W/K
rated heating capacity 300/500W (optional)
rated input current 3.4A
rated input power 164W
rated input voltage DC48V
Noise ≤65dB
Installation method Side mount



4. Cabinet Heat Exchanger Dimension Diagram:
430×220×700 mm (W×D×H)


DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control



5. Features

(1) Strong adaptability
(2) High intelligence, high precision, high reliability
(3) LED display, all the settings can be changed at field
(4) Low noise, low energy consumption
(5) With 4 way switching value detection
(6) With 1 way room air conditioner control
(7) Wide input voltage range: DC36 - 65V
(8) Dry contact alarm output,NO/NC optional
(9) IP grade: IP55, dust proof and water proof


6. System Principle Diagram

DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control

7. Electrical Wiring Diagram


DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control
Wiring Ports:
0V -48V: power supply input (voltage input: DC36 - 65V)
A+ B- SGND: RS485 communication interface
AL1 AL2: general alarm output
F+ F- : auxiliary direct ventilation control output (output voltage: DC36 - 65V)


8. Control Board Diagram


DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control



9. Picture of Heat Exchanger installed on the cabinet

DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control

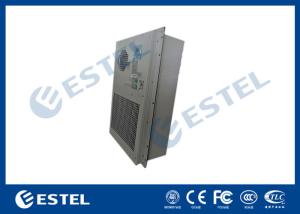

10. Enclosure Heat Exchanger Pictures

DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control
DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control
DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control


11. Packing

DC48V IP55 Enclosure Heat Exchanger Modbus Intelligent Temperature Control
